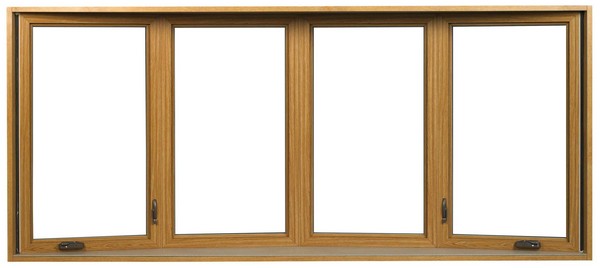

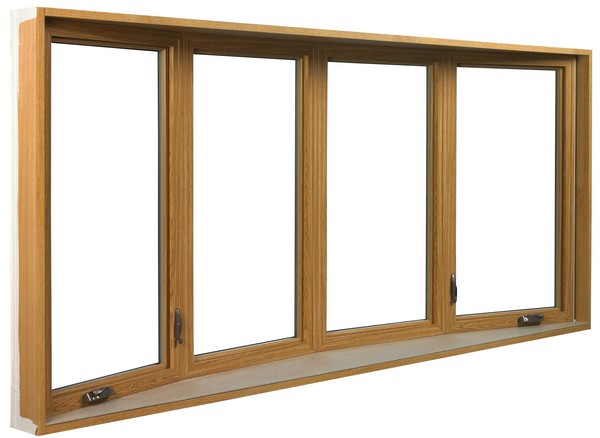

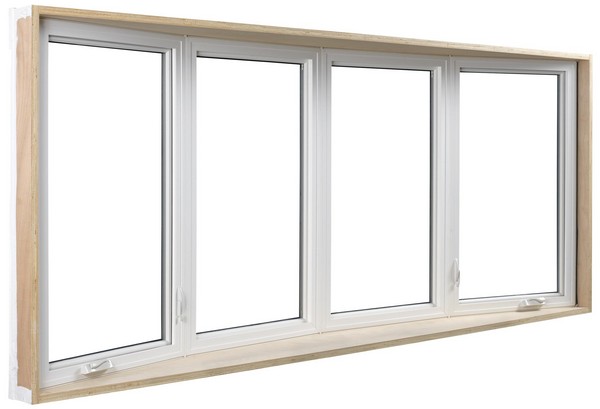

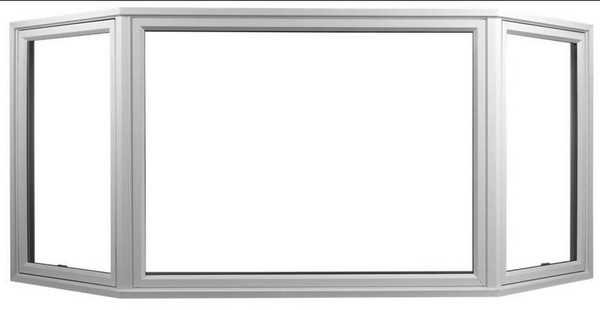

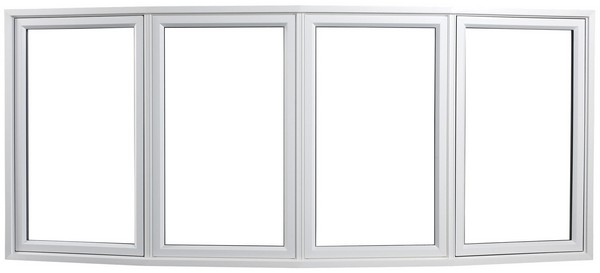

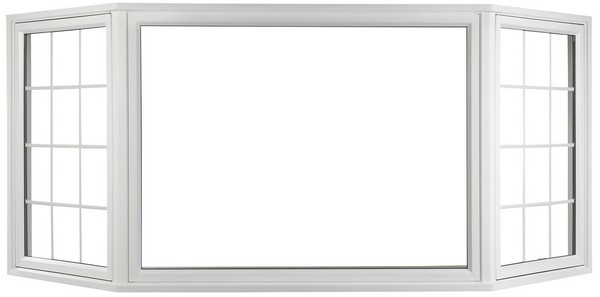

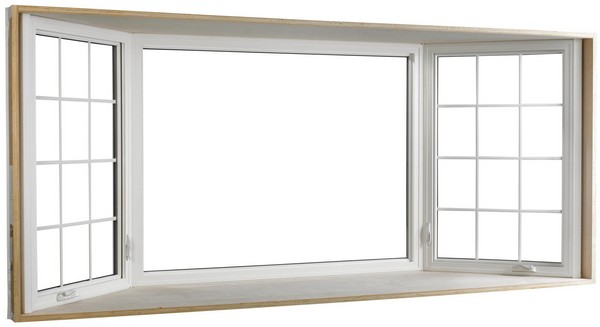

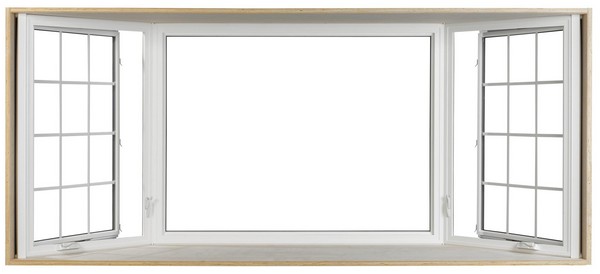

  • The Choice is Yours: Bay and Bow Windows can be made with either Up and Down windows, Picture Windows or Crank-Out Windows.
  • Up to a 15% Reduction in your Energy Bills: Our ENERGY STAR qualified windows and doors can reduce your energy bills up to 15% while helping protect the environment. And our windows can exceed ENERGY STAR Qualifications by more than 25% leading to even greater energy savings.
  • Warmer in the Winter and Cooler in the Summer:
    • More of the sun’s heat is blocked in the summer.
    • More of your furnace’s heat stays in your home in the winter.
    • Less drafts from air infiltration.
  • Ease of Cleaning: For ease of cleaning the glass on Crank-Out Windows open to a full 90 degrees from your home. If you chose Up and Down windows, then both pieces of glass tilt in. Both window styles allow you to clean the outside of your windows from inside your home. Also, optional Advanced Easy Clean Glass is a remarkable advancement in glass design that eliminates frequent exterior window cleaning. Windows and doors with special Easy Clean Glass require less effort than windows with ordinary glass.
  • Increased Home Value: Based on Remodeling Magazines 2011-2012 National Cost vs Value Report after installing the vinyl windows pictured above your home’s value should increase so much as to recoup 68% of the cost of your new windows and installation.
  • Your Room Can Feel Larger: Bow and bay windows not only give you great expansive views they also can make your home feel larger. Some even provide a window seat.
  • Operational Ease: No more hard to operate windows. our windows are designed to be easy to operate.
  • A Lifetime of Windows that Work: Life comes with few guarantees. Fortunately, our windows offer you a permanent solution. Our custom vinyl windows offer more than construction quality, unmatched energy-efficiency and low maintenance. They also offer a Limited Lifetime Warranty. We believe so strongly in the durability of our windows that we back each window and door with our hassle-free Limited Lifetime Warranty. Lifetime means your windows and doors are protected under the warranty for as long as you live in your home. And your warranty is transferable to the next homeowner, helping you protect your investment by increasing your home’s resale value.
Exterior
Available Interior Options


White

White

Cherry

Light Oak

Dark Oak


Beige

White

Cherry

Light Oak

Dark Oak

Beige


Earthtone

White

Cherry

Light Oak


Sandstone

White


Dark Bronze

White


The number of horizontal and vertical dividers will vary on all window styles with colonial dividers. The number of dividers is based the size of your window. Diamond pattern available upon request.



  • In between the glass for easy glass cleaning.
  • 1 inch wide
  • Sculptured
  • Flat glass dividers are available upon request (please call) yet they are not available with a wood grain interior.


Dual Pane Insulated Glass:
Dual pane insulated glass consists of two panes of glass that are sealed together resulting in one dead air space in between the glass – the dead air space is an insulator. Our overall insulated glass measures 7/8” thick. A dead air space between the glass of at least 3/4” is optimal for allowing air to act as an insulator. Any dead air space over 3/4” does not provide more insulation. Having dual pane glass greatly reduces heat and sound transfer.

Triple Pane Insulated Glass:
Triple pane insulated glass consists of three panes of glass that are sealed together resulting in two dead air spaces in between the glass. Triple pane glass reduces the heat and sound transfer more than dual pane insulated glass.

Low-E:
Low-E stands for low emissivity. It is a very thin metallic coating that allows the sun’s light to pass through the insulating glass, but, at the same time reflects radiant heat back toward its source. It helps keep your home warmer in the winter by trapping radiant heat in your home. And it helps keep your home cooler in the summer by blocking radiant heat from entering your home. The low-e glass provided in your windows results in minimal visible darkening which has been a common problem with some low-e glass. Also it minimizes interior glare, reducing eyestrain and making it easier to watch television or look at a computer screen when bright sunlight fills a room.

Argon Gas:
Argon is a nontoxic, nonreactive, clear, and odorless gas . It is put in the air space(s) of your dual and triple pane insulated glass. Argon gas is less heavy and slower-moving than air and thus minimizes convection currents within the dead air space. Conduction through the gas is reduced, and the overall transfer of heat is reduced.

Warm Edge Spacer:
The panes of glass in dual or triple pane insulating glass are held together by a spacer. The spacer runs along the entire perimeter of your insulating glass. The edge of the glass is the coldest part of any window. So the spacer is very important. The Warm Edge Spacer System reduces thermal transfer at the edge of the glass by utilizing a unique U-shaped channel to separate the glass panes and interrupt the natural flow of heat to cold. It flexes with glass expansion and contraction to ensure a strong seal for the life of the window.

Optional Advanced Easy Clean® Glass is a remarkable advancement in glass design that eliminates frequent exterior window cleaning. Windows and doors with special Easy Clean Glass require less effort to clean than windows with ordinary glass.



Up & Down Windows

  • Action: As you engage the cam lock it draws the sashes together and pushes them into the frame for maximum security and energy efficiency.
  • Concealed: Nested into the sash frame rather than sitting on top of the frame. The cam lock gives you maximum glass viewing area and is more aesthetically pleasing from the exterior of your home.
  • Security: Many break-ins occur through windows that are left unlocked. And the ‘bad guys’ sometimes case your home simply looking for unlocked windows. With this nested low profile cam lock you won’t be advertising that you inadvertently left your window unlocked.
  • Two cam locks are standard on windows over 25" wide for added security
  • Ventilation Latch: There are two ventilation latches on each window. When engaged this allows the homeowner ventilation and security at the same time as the ventilation latches keep the sash from easily rising in a full open position. (Ventilation latches do not offer as much security as a locked window.)
  • Tilt Latch: There are four tilt latches on each Up & Down Window allowing the homeowner to easily tilt the sashes in for cleaning the outside glass.
  • Child Safety Latch: Every day you whisper a promise to your child, “I’ll always love you and keep you safe.” But keeping your home and children safe takes more than promises. The child safety latch reduces the risk of a child falling out of your window. An optional feature, it is put in place of one (not both) of the ventilation latches. It is always in the engaged position therefore to open the window fully you must push in the child safety latch.

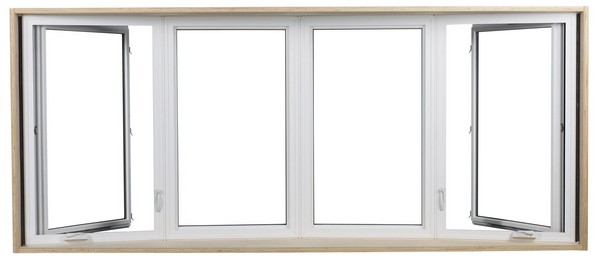

Crank-Out and Picture Windows

  • Nested Crank Handle: This folding handle offers a smoother, more contemporary, integrated look when nested in the operator cover.
    • Aside from the aesthetic appeal, it reduces interference with blinds and curtains.
    • The streamlined design allows for easy screen release without removing the crank handle.
    • This system is uniquely designed to prevent handle collapse during operation.
  • Lock Lever: This is a single handle, multi-point locking system.
    • When you lock your window it engages the sash at multiple points for optimal security and energy efficiency.
    • Secure and solid, lets you “feel” when the window is locked.
    • The unique design makes the lock highly pick-resistant.
    • Excellent “reach-out” capability. No need to fully close the window before locking it.
    • The heart of this system is the “progressive” locking action. The casement tie bar engages and pulls in the lowest lock point first, followed by the remaining keeper(s) in sequence. This “zippered effect” assures the top lock point on tall units always engages and pulls in.. You can feel the smooth and easy lock operation the sequential lock action provides.
    • Note that a crank-out casement has a single handle and the crank-out awing window has two handles.

Your windows will be entirely fusion welded – sashes and mainframes – to create a solid, one-piece unit that maintains its strength over the years. We offer a state-of-the-art fusion process that ensures frame and sash corners won't have the excess variance found with other welding techniques. (Pictured is a Crank-Out window style.)

InterForce II is a fiberglass reinforcement adding superior strength and stability to the meeting rails. Premium Series only. (Not available on sliding doors.)
